Sleek Hi-Velocity Gourmet Hoods

Outfit your commercial style range with a Sleek Gourmet wall mounted hood.
This is a unique style of ventilation (only 12 5/8" front to rear) that can install beneath cabinets, using Exterior Blower ventilation.
Exterior Blowers for wall & roof remote applications

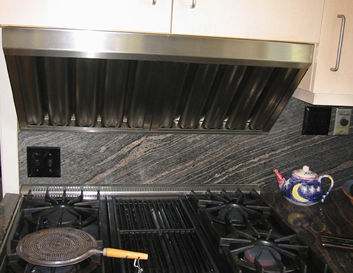

Shown Above: 36" Welded model over a 36" cooktop with 4 burners
and char broiler


The Hi-Velocity Sleek Gourmet Hoods offer you commercial ventilation technology that has been in used in the food service industry for over 60 years. Combining versatility with durable heavy gauge stainless steel construction and unique styling.

Ideal for: Ranges, Cook Tops, BBQs, Ovens and more.

Great for multistory buildings, homes with cathedral style ceilings, or island applications where down draft is required.

* Information required for blower sizing: 1/8 " static pressure, 300 CFM per linear foot, supplier will need to know length of duct run, number of 45 and 90 degree elbows

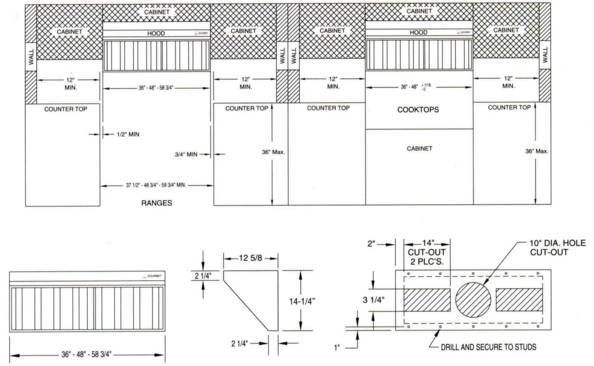

Vent Requirements: Requires min of 10" diameter or two 3 1/4 x 14" rectangular cut-outs

Used with and Exterior Blower Only. Blowers Sold Separately

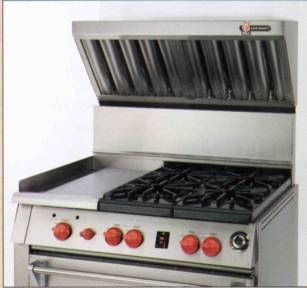

Shown Above: 36" Welded model over a 36" cooktop with 4 burners
and char broiler

Features:

  • Hood: Available in a brushed stainless #4 finish, 20 or 18 gauge, welded polish.
  • Filters: stainless, #4 finish - dishwasher safe.
  • No overhang of hood to cooking equipment required
  • Low profile: Typical Mounting Height: 10" Above cooking surface.
  • Baffle type filters are efficient as well as easy to clean & maintain and never loose their efficiency.
  • Venting: Top or Rear.
  • May be used with overhead cabinets.
  • The ABSV series hood uses a remote blower (not included) * (requires 300CFM per linear foot).
  • The ABSV series hood may be vented through cabinets, directly out the back through an exterior wall, or for down draft.
  • Low profile and shallow depth of hood allow for design of lighting or storage in the area above the hood.
  • Top of the hood may be used as a shelf.

Specifications & Price List


Model
Measurements
Weight
ABSV30
30" W x 12 5/8 D x 14 1/4 H
35#
ABSV36
36" W x 12 5/8 D x 14 1/4 H
40#
ABSV48
48" W x 12 5/8 D x 14 1/4 H
45#
ABSV48I
48" W x 18 1/2 D x 14 1/4 H
50#
ABSV60
60" W x 12 5/8 D x 14 1/4 H
65#
ABSV61
61" W x 12 5/8 D x 14 1/4 H
68#

All with #4 brushed finish
Custom Sizes Available By Special Order

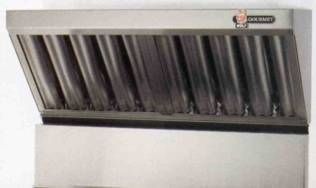

These models have been discontinued by Wolf but are still available through Dvorson's (without emblem shown below).

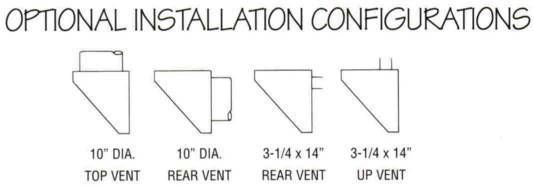

Configurations



Secs
