Wolf Super Charbroiler Design features finned cast alloy radiant that produce infrared rays to seal in the juices, Steaks, chops, hamburgers and seafoods have a delicious, charbroiled flavor! Other features include: Flame-Arrestor greates with cast-in pitched grease trough on each blade, Standard pilots, individually controlled direct action burners and a heat deflector under each burner, which creates a "cool zone" in the grease drawer. These SCB models are 27" deep in five widths 25", 36", 47", 60" and 72"
Standard Features: Depth:27-1/4"Height:14-3/4"Working Height:13"
Stainless steel sides, control panel, top rim backsplash and grease trough.
Full width front grease drawer.
Heavy cast iron reversible char-radiants and "Flame Arrestor" broiler grates
5-1/4" wide grates are reversible for "level" broiling or self cleaning. Cast-in pitched grease trough in east grate blade provides far run-off and controls flare-ups.
One 14,500 BTU/Hr burner for each broiling grate.
Standing pilot ignition system
One infinite heat control valve for each burner
Underburner heat deflector creates a "Cool Zone" in the grease drawer and drip pan areas
4" adjustable legs
3/4" rear gas connection and gas pressure regulator
Choose Natural Gas or Liquid Propane model
Comes standard with Cast Diamond Grates
Optional Features/Accessories:
Super-Charger burner dividers
Diamond rod and waffle pattern cast iron grates
Round rod and diamond rod welded steel grates
10" deep plate rail
6" Backsplash with tapered sides splash kit Stainless steel stand with undershelf and casters

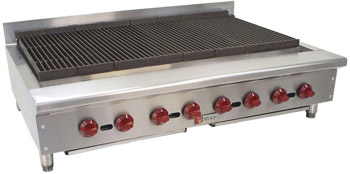

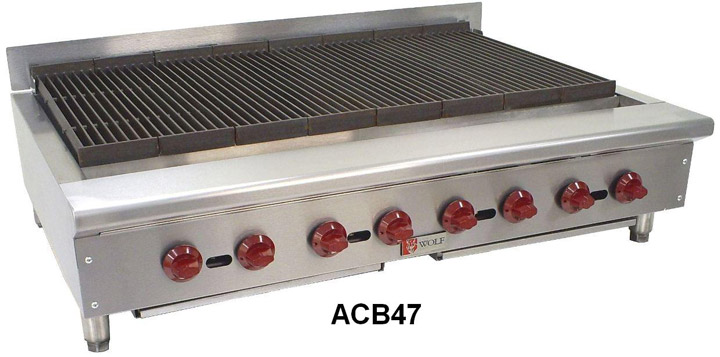

The Achiever broiler line is designed to match-up to the Achiever hot-plates and Achiever griddles to fit nicely on the Achiever refrigerated bases or as a counter top application. The depth dimensions are greater on the Achievers than the SCB's. The Achievers also have a slightly greater BTU rating to compesate for the larger cooking surface. The Achiever also has a higher profile.
Standard Features: Depth:33"Height:15-3/8"Working Height:11-1/2"
Available in 25", 36", 47" and 60" widths
Stainless steel sides and control panel, top rim backsplash and grease trough
Full width front grease drawer
Heavy duty cast iron char-radiants
5-1/4" wide grates are reversible for "Level" Broiling or self cleaning
One 16,000 BTU/Hr. burner for each broiler grate
Standing pilot ignition system
One infinite heat control valve for each burner
Underburner heat deflector creates a "Cool Zone" in grease drawer and drip pan areas
4" adjustable legs
3/4" rear gas connection and gas pressure regulator
Choose natural gas or liquid propane model
Supercharger burner divider plates
Comes standard with Cast Diamond Grates View Achiever Series brochure »
Optional Features/Accessories:
6" legs
Cutting Board
12-1/4" deep plate rail
Condiment Rail
Back and side splash kit
Welded steel diamond and round rod grates
10-1/2" wide griddle plate inserts Stainless steel stand with undershelf and casters
Infrared Burners allow more moisture to be retained in your grilled foods
Dramatically saves energy by using super high efficiency 100% IR burners (infra-red)
Stainless steel sides, control panel, top trim and backsplash
Full width, stainless steel front crumb tray
Heavy duty steel emitter panels
11" x 25" Stainless Steel Cooking Grids (providing 275 sq. inches of cooking area in each burner zone)
Energy efficient 22,000 BTU/hr. patented IRX™ burner technology in each 12" cooking zone
Rotary piezo provides direct spark ignition to burners–no standing pilot
One high range heat control valve for each burner section
Chrome burner control knobs
Removable, stainless steel heat shield and splash guard
4" adjustable legs
3/4" NPT rear gas connection and gas pressure regulator provided (Natural Gas or LP models available)
1-year limited parts and labor warranty
View video segment below showing the IRX advantage
Free Shipping to commercial destinations in the contiguous United States
Please call us at 1-877-386-7766 for more information, or to place your order.
Model Number
Description/Details
Price
Buy Now
VTEC14
Burner Sections: 1
Dimensions (W x D x H): 14" x 35" x 13"
Total BTUs: 21,000 Specifications
$2,018.75
VTEC25
Burner Sections: 2
Dimensions (W x D x H): 25" x 35" x 13"
Total BTUs: 42,000 Specifications
$2,892.75
VTEC36
Burner Sections: 3
Dimensions (W x D x H): 36" x 35" x 13"
Total BTUs: 63,000 Specifications
$3,779.10
VTEC48
Burner Sections: 4
Dimensions (W x D x H): 48" x 35" x 13"
Total BTUs: 84,000 Specifications
$4,637.90
VTEC60
Burner Sections: 5
Dimensions (W x D x H): 60" x 35" x 13"
Total BTUs: 105,000 Specifications
Use coupon code "100456ed" during online checkout and save $60 instantly on the VTEC60 IRX charbroiler (natural gas model). Coupon expires 5/31/2012.
Stainless steel front, sides and front top ledge.
Full width front grease drawers.
13" cooking height on 4" adjustable legs.
Heavy duty cast iron char-radiants.
51⁄4" wide cast iron grates are reversible for level or inclined broiling positions.
One 14,500 BTU/hr. cast iron burner for each broiler grate.
One infinite heat control valve for each burner.
Standing pilot ignition system.
Underburner deflector system reflects heat upwards creating a "Cool Zone" in the grease drawer and drip areas.
3⁄4" rear gas connection and convertible gas pressure regulator for LP service.
Constructed standard for natural gas service (LP conversion kit supplied/included with unit standard).
One year limited parts and labor warranty.
Free Shipping to commercial destinations in the contiguous United States
Please call us at 1-877-386-7766 for more information, or to place your order.
Model Number
Description/Details
Price
Buy Now
VCRB25
Number of Burners: 4
Dimensions (W x D x H): 25.4" x 27" x 13"
Total BTUs: 58,000
Natural Gas or Liquid Propane
SpecificationsManual
$1,215.00
VCRB36
Number of Burners: 6
Dimensions (W x D x H): 36" x 27" x 13"
Total BTUs: 87,000
Natural Gas or Liquid Propane SpecificationsManual
